Duplex Pipe Fittings UNS S32205 Buttweld Barrel Nipple
ANSI/ASME B16.9 - BUTTWELD BARREL NIPPLE ASTM A403
ASTM A403 Monel 400, K500 buttweld barrel nipple, ASME B16.28 Buttweld barrel Nipple, ASTM A403 Nickel 200/201 buttweld barrel nipple, ASME A403 Inconel 600/601/625 Buttweld barrel nipple, Stainless steel 304/304L/304H Buttweld barrel Nipple, SS 316/316L/316H Buttweld barrel Nipple, Alloy steel ASTM A234 WP1/WP5/ WP9 Buttweld Barrel Nipple, Alloy Steel ASTM A234 WP11/WP12/WP22 Buttweld Barrel Nipple, Carbon Steel A234 WPB/WPBW Buttweld Barrel Nipple, Carbon Steel A234 WPHY 42/WPHY 46/ WPHY 52 Buttweld Barrel Nipple
Duplex Pipe Fitings UNS S32205 Buttweld Barrel Nipple ANSI/ASME B16.9 Butt welding Barrel Nipple of different shapes and size with different specifications as per the international standard. We have a wide selection of ANSI/ASME B16.9 Buttweld Barrel Nipple that has amazing features such as durability, precision and accuracy. We have a team of experienced people who contribute too much to provide the premium quality product at an affordable rate. These pipe nipples are one of the most impprtant need in the process of pipelining in every building. These nipples have got a very good finishing externally as well as internally. We put our best to satisfy each client and keep the best name in the leading companies.

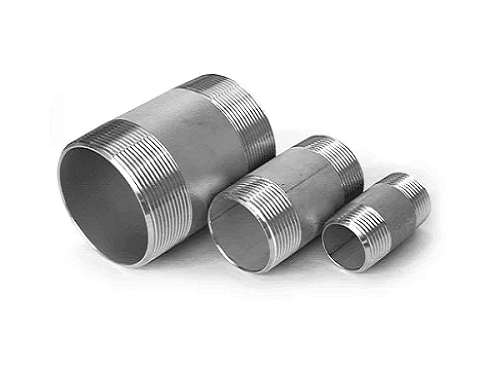

UNS S32205 is a duplex stainless steel grade that is characterized by its excellent corrosion resistance and high strength. It is often used in various industrial applications, including piping systems. A buttweld barrel nipple is a type of pipe fitting that has two male-threaded ends and a barrel-shaped middle section.
Duplex Pipe Fitings UNS S32205 Buttweld Barrel Nipple
Some of the features are
- Long Service life
- Easy to install
- Corrosion free
- Extra tensile materials used
Specification - ASME B16.9 Seamless Welding Fittings
Buttweld Barrel Nipple
| Standards: | NSI – B 16.9 ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’ API 590-605 ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings” ASME B16.25 – ‘Buttwelding Ends’ ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’ MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’ |
| Schedule: | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Sizes: | 1/2"NB TO 48"NB IN |
| Materials: | Monel : Grade: Monel 400, Monel K500, Monel R-405 Nickel : Grade: Nickel 200, Nickel 201 Inconel : Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718 Incoloy : Grade: Incoloy 800, Inconel 800H, 800HT Hastalloy : Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy c276, Hastalloy X Titanium : Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 Stainless Steel : Grade: ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 Alloy Steel: Grade: ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 Carbon Steel : Grade: ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Type: | Butt Weld (BW) |
| Dimension: | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
Dimensions Buttweld Barrel Nipple
| S.40 Stainless Steel Barrel Nipple
Dimensions: Unit：mm |
||||||
| SIZE | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
|---|---|---|---|---|---|---|
| S | 1.7 | 2.0 | 2.0 | 2.5 | 2.5 | 3.2 |
| L | 40.0 | 40.0 | 40.0 | 60.0 | 60.0 | 60.0 |
| SIZE | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| S | 3.2 | 3.2 | 3.6 | 3.6 | 4.0 | 4.5 |
| L | 80.0 | 80.0 | 100.0 | 100.0 | 120.0 | 120.0 |
Uses & Application
| Chemical | Oil Mills | Petrochemical | Mining | Refineries | Construction |
| Fertilizers | Shipbuilding | Power Plant | Steel Plant | Nuclear Power | Offshore |
| Oil & Gas | Defence | Paper | Ports | Breweries | Railway |
| Cement | Engineering Co. | Sugar & | Government Org. etc. |
