Titanium 180° Elbow

ANSI / ASME B16.9 180 Deg Elbow

ANSI B16.9 Buttweld Elbow 180 Degree Manufacturer in India, MSS SP-75 180 Deg Elbow Short Radius Suppliers.

Titanium 180° Elbow The 180 Deg Elbow Dimensions produced at our factory can be made according to the following Standards - ANSI, B16.9, ASME, DIN2650, 2615, 2616, 2617 JIS B2311, 2312, 2313, EN 10253-11, EN10253-2 . The types of Elbow 180 Degree include Seamless, Welded as well as Fabricated ones.

The specification for ASME B16.9 180 Deg Elbow Standard covers overall dimensions, ratings, testing, tolerances, and markings for both wrought carbon and alloy steel factory produced buttwelding fittings such as the 180 Degree Pipe Elbow. The specification covers fittings like the 180 Deg Elbow Weight of any producible wall thickness.

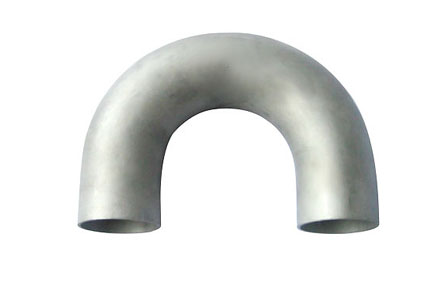

180-degree-long-radius-elbow-buttweld-fittings
Titanium 180° Elbow
What is ASME B16.9 180 Deg Elbow?

A 180 Degree Elbow, is also referred to as a 180 bend or 180 ell. The DIN 2605 180 Deg Elbow Type 3 is commonly used in diverse sectors such as Oil and Gas Industry , Nuclear Industry, Pulp &Paper Industry, Petro-Chemical Industry, Research & Development , Mega Projects as well as the Defense & Development Industries. In fact owing to the special grade of steel 180 Degree Mitered Elbow could be used for all critical applications

Stainless Steel 180 Deg Elbow Long Radius Specification
Specifications ASME B16.9 180 Deg Elbow
ASME B16.9 elbow 180 degree size Seamless Butt Weld Fittings: 1/2″ – 10″
Welded Butt Weld Fittings: 1/2″ – 48″
180 Deg Elbow Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Elbow 180 Sch 40 Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
180 Deg Elbow Short Radius Types Seamless / ERW / Welded / Fabricated Pipe Fittings
180 Deg Elbow LrType DN15-DN1200
Connection For Stainless Steel 180 Deg Elbow Long Radius Welding
180 Degree Elbow Fitting Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
180 Degree Pipe Elbow Size Range ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Carbon Steel SCH 80 180 Degree Elbow Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process For 180 Deg Street Elbow Push, Press, forge, Cast, etc.
180 Deg Short Radius Elbow Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Origin & Mills For 180 Degree Compression Elbow Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for ASME B16.9 Elbow 180 Deg
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Application For Elbow 180 Sch 10
  • Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc
  • ASME B16.9 Schedule 10 180 degree elbow are an economical alternative for lower-pressure applications.
  • ANSI B16.9 Schedule 40 180 degree elbow have a thicker wall for higher-pressure applications.
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Carbon Steel SCH 80 180 Degree Elbow Material
Carbon Steel 180 Degree Elbow Fitting
  • ASTM A105 180 Deg Elbows
  • ASME SA105 Elbows 180 Sch 40
  • DIN 1.0402 180 Deg Elbows Short Radius
  • DIN 1.0460 180 degree elbows
  • DIN 1.0619 180 Deg Elbows LR
  • ASTM A105N 180 Deg Elbows Long Radius
  • ASME SA105N 180 Degree Pipe Elbows
  • ASTM A350 LF2 180 Deg Street Elbows
  • ASME SA350 180 Deg Short Radius Elbows
  • High Yield CS ASTM A694 Elbows 180 Sch 10
Copper 180 degree elbows T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel Elbows 180 Sch 80 Copper Nickel 180/10 (C70600 ) SCH 80 180 Degree Elbows, Cupro Nickel 70/30 (C71500) Elbows 180 Degree Sch 80, UNS C71640 180 degree elbows
Brass Buttweld Elbow 180 Degree 3602 / 2604 / H59 / H62 / etc.
Hastelloy Elbow 180 Degree Hastelloy C276 (UNS N10276) 180 Degree Mitered Elbow, C22 (UNS N06022) 180 degree elbow, C4 Elbow 180 Sch 40, C2000 180 degree elbows, B2 180 Deg Elbows, B3 180 Deg Street Elbows, X 180 Degree Elbows
Monel 180 Deg Short Radius Elbow Monel 400 (UNS No. N04400) 180 Degree Mitered Elbow, Monel 500 (UNS No. N05500) Elbow 180 Sch 10
Alloy 20 Elbow 180 Sch 80 Carpenter® 20 Alloy schedule 80 180 Degree Elbows, Alloy 20Cb-3 Elbows 180 Degree schedule 80
Aluminium Buttweld Elbow 180 Degree 5052 /6061/ 6063 / 2017 / 7075 / etc.
Stainless Steel 180 Degree Compression Elbow
  • ASTM A182 F304 180 degree elbows
  • ASTM A182 F304L Buttweld Elbow 180 Degree
  • ASTM A182 F316 Elbows 180 Degree
  • ASTM A182 F316L 180 degree elbows
  • ASTM A182 F317 180 Degree Elbows
  • ASTM A182 F317L 180 Degree Mitered Elbow
  • ASTM A182 F321 180 Deg Elbows
  • ASTM A182 F321H Elbows 180 schedule 40
  • ASTM A182 F347 180 Deg Elbows Short Radius
  • ASTM A182 F347H 180 Deg Elbows LR
Alloy Steel 180 degree elbows
  • ASTM A182 F5 180 Deg Elbows Long Radiu
  • ASTM A182 F9 180 Degree Pipe Elbows
  • ASTM A182 F11 180 Deg Street Elbows
  • ASTM A182 F22 180 Deg Short Radius Elbows
  • ASTM A182 F91 Elbows 180 schedule 10
Inconel 180 degree elbows
  • Inconel 600 Elbow 180 Sch 80
  • Inconel 601 SCH 80 180 Degree Elbows
  • Inconel 625 Elbow 180 Degree Sch 80
  • Inconel 718 Buttweld Elbow 180 Degree
  • Inconel x750 180 degree elbows
Nickel Elbow 180 Degree Nickel 200 180 degree elbows, Nickel 201 180 degree elbows
Duplex Buttweld Elbow 180 Degree S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Elbow 180 Degree Sch 80 S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy 180 Degree Mitered Elbow Incoloy 800 180 Deg Elbows, Incoloy 800H Elbows 180 schedule 40, Incoloy 800HT (UNS N08800) 180 Deg Elbows Short Radius, Incoloy 825 (UNS N08825) 180 Deg Elbows Long Radius
254 Smo 180 Deg Short Radius Elbow SMO 254/6Mo 180 Deg Elbow LR, UNS S31254 180 Degree Pipe Elbow, DIN 1.4547 180 Deg Street Elbow
Nimonic 180 Deg Elbow Nimonic 75 180 Deg Short Radius Elbows, Nimonic 80A Elbows 180 schedule 10, Nimonic Elbows 180 schedule 80
Other ASME B16.9 180 Deg Elbow material Tin bronze 180 degree elbows, Alumunum bronze 180 degree elbows, Lead bronze 180 degree elbows
Titanium 180 degree elbows
  • ASTM B381 Titanium Gr. 1 Elbow 180 Degree Sch 80
  • ASTM B381 Titanium Gr. 2 180 Elbow 180 Degree
  • ASTM B381 Titanium Gr. 4 180 Buttweld Elbow 180 Degree
  • ASTM B381 Titanium Gr. 5 180 Degree Elbows
  • ASTM B381 Titanium Gr. 7 180 Degree Mitered Elbow
ASME B16.9 180 Deg Elbow Types
180-degree-elbow-manufacturer
ASME B16.9 180 Deg Elbow SCH 10 180 Degrees Bending Angle, ASTM A234 WPB Elbows
180-degree-elbow-manufacturer1
180 Deg Elbow SCH 40 ASTM A234 GR WP5 180 Degree Seamless Elbow SR BW SCH.40
180-degree-elbow-manufacturer2
Elbow 180 Degree Sch 80 180D, ASTM A403 WP321, 4 Inch, Long Radius Elbow
180-degree-elbow-manufacturer3
ASME B16.9 elbow 180 degree 2 Inch, SCH 40S, ASTM A403 WP304H 180 Degree Elbow SR
180-degree-elbow-manufacturer6
Buttweld 180 Degree Elbow Fitting A234 WPB, 3 Inch, Schedule 80, 180 Degree Long Radius Elbow
180-degree-elbow-manufacturer7
DIN 2605 180 Degree Pipe Elbow ASME B16.9, 6 Inch, SCH 40, A234 WPB 180 Degree Long Radius Elbow
180-degree-elbow-manufacturer8
Carbon Steel 180 Deg Street Elbow ANSI B16.9, 180 Degree, 30 Inch, ASTM A860 WPHY65 Elbow
180-degree-elbow-manufacturer9
Stainless Steel Short Radius Elbow ASTM A234 WPB, 36 Inch Welded Fittings 180 Deg Elbow

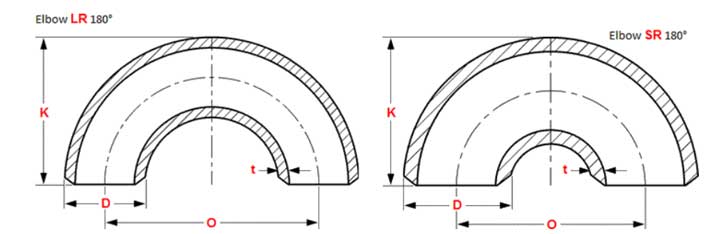

ASME B16.9 180 Deg Elbow Dimensions
180-degree-elbow-dimensions
NPS O.D.
D		 180deg Long Rad 180deg Short Rad
Center to
Center
O		 Back to
Face
K		 Center to
Center
O		 Back to
Face
K
1/2 21.3 76 48 … …
3/4 26.7 76 51 … …
1 33.4 76 56 51 41
1.1/4 42.2 95 70 64 52
1.1/2 48.3 114 83 76 62
2 60.3 152 106 102 81
2.1/2 73 190 132 127 100
3 88.9 229 159 152 121
3.1/2 101.6 267 184 178 140
4 114.3 305 210 203 159
5 141.3 381 262 254 197
6 168.3 457 313 305 237
8 219.1 610 414 406 313
10 273 762 518 508 391
12 323.8 914 619 610 467
14 355.6 1067 711 711 533
16 406.4 1219 813 813 610
18 457 1372 914 914 686
20 508 1524 1016 1016 762
22 559 1676 1118 1118 838
24 610 1829 1219 1219 914
NPS O.D.
D		 180deg Long Rad 180deg Short Rad
Center to
Center
O		 Back to
Face
K		 Center to
Center
O		 Back to
Face
K
ASME B16.9 180 Deg Elbow Weight Chart
WEIGHTS OF FITTINGS
NPSinches ELBOWSLR 180° ELBOWSSR 180°
Sch.5S Sch.10S Sch.40S Sch.80S Sch.5S Sch.10S Sch.40S Sch.80S
1/2 0.05 0.06 0.08 0.10 0.03 0.04 0.05 0.07
3/4 0.06 0.07 0.09 0.11 0.04 0.05 0.06 0.07
1 0.09 0.15 0.18 0.20 0.06 0.10 0.12 0.13
1 1/4 0.13 0.20 0.25 0.35 0.09 0.13 0.17 0.12
1 1/2 0.18 0.30 0.40 0.50 0.12 0.20 0.27 0.33
2 0.30 0.50 0.70 0.180 0.20 0.33 0.47 0.60
2 1/2 0.60 0.85 1.35 1.80 0.40 0.60 0.180 1.20
3 0.180 1.30 2.00 2.180 0.60 0.180 1.35 1.180
4 1.40 2.00 4.00 5.180 0.180 1.35 2.65 3.180
5 2.180 3.60 6.50 9.70 1.95 2.40 4.35 6.50
6 4.00 5.00 10.5 16.0 2.70 3.35 7.00 10.5
8 7.40 10.0 21.5 33.5 4.180 6.70 14.5 22.5
10 13.6 16.8 38.5 52.5 9.10 11.2 25.6 35.0
12 23.4 27.0 59.0 79.0 15.6 18.0 39.5 53.0
14 29.0 35.0 70.0 94.0 19.3 23.5 47.0 63.0
16 41.3 47.0 95.0 125 27.5 31.5 63.5 84.0
18 51.8 59.0 120 158 34.5 39.5 80.0 105
20 73.0 85.0 146 194 49.0 57.0 98.0 129
24 122 140 210 282 82.0 94.0 140 188
Approximate weights in kg, density 8 kg/dm3
Dimensional Tolerances Of ASME B16.9 180 Deg Elbow
DIMENSIONAL TOLERANCES – ELBOWS
For all fittings Elbows 180/45 deg 180° Returns
Nominal Pipe Size (NPS) Outside Øat Bevel Inside Øat End Wall Thicknesst / t1 Center to End Dim. A-B-C-M Center to Center Dim.O Back to Face Dim.K Align- ment of EndsU
1/2 a 2 1/2 1 0,8 Not 2 7 7 1
3 a 3 1/2 1 1,6 less 2 7 7 1
4 +2 -1 1,6 than 2 7 7 1
5 a 6 +3 -1 1,6 87,50% 2 7 7 1
8 2 1,6 of nominal 2 7 7 1
10 +4 -3 3,2 tickness 2 7 7 2
12 a 18 +4 -3 3,2 3 10 7 2
20 a 24 +6 -5 4,8 3 10 7 2
26 a 30 +7 -5 4,8 3 ….. ….. …..
32 a 48 +7 -5 4,8 5 ….. ….. …..
Angularity Tolerances
ND Max off angle Max off plane
Q P
1/2 a 4 1 2
5 a 8 2 4
10 a 12 3 5
14 a 16 3 7
18 a 24 4 10
26 a 30 5 10
32 a 42 5 13
44 a 48 5 20
