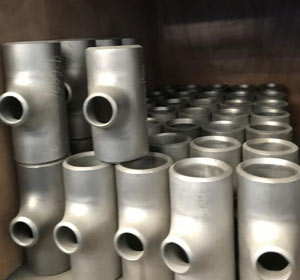

ANSI / ASME B16.9 Equal Tee Fitting
Manufacturer of ANSI B16.9 Bw Equal Tee in Mumbai, India, SS Tee Fitting Suppliers.
Titanium Equal Tee Kapoor Forge , we are one of the leading manufacturer, suppliers and exporter of a wide range of quality ASME B16.9 Equal Tee Dimensions buttweld fitting in India. The Bw Equal Tee manufactured in our factor is from superior grade raw materials. We specialize in the manufacture of Reducing Tee Dimensions Asme B16 9 which are used to create multiple connections of pipes.
Types of the ASME B16.9 Equal Tees Fitting include - Butt Weld or BW, Seamless, ERW, Welded as well as Fabricated type. The outside diameter for Tees Dimensions Asme B16 9 can range from ½ inch to about 48 inches. Although the size range for the seamless type and welded type are known to differ. Seamless Copper Equal Tee can be in the size range up to 24 inches while welded Copper Equal Tee can range between 8 inches to 36 inches. While the weight of the Equal Tee Weight Chart also depends on its thickness or schedule. Usually, we stock Equal Tee And Reducing Tee in the following Thickness - 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, Schedule 5S, 10S, S100, S120, S140, S160, XXS and etc.
Titanium Equal Tee
What is ASME B16.9 Equal Tee Fitting?
The Equal Tee Asme B16.9 offered by us are widely used in wide array of industries such as shipbuilding, power generation, oil & gas, pulp and paper mills, petrochemical wastewater treatment plants, and pharmaceutical plants. These seamless & welded Barred Equal Tee typically conform to dimensional standard ANSI B 16.9. This specification of Asme B16 9 Tees is available in classes between 2000 to 9000. The thickness of the Unequal Tee is available from Schedules from 10 to 160 as well .
Equal Tee ASME B16.9 Specification
| Specifications | ASME B16.9 Equal Tee Fitting |
|---|---|
| Asme B16 9 Tee size | Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48" |
| ASME B16.9 Equal TeeDimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Tee Dimensions Asme B16 9 Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Unequal Tee Types | Seamless / ERW / Welded / Fabricated Pipe Fittings |
| Equal Tee And Reducing Tee Type | DN15-DN1200 |
| Connection For Equal And Unequal Tee | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings |
| Equal Tee Asme B16.9 Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Barred Equal Tee Fittings | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D,
5D,
6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Manufacturing process for Bw Equal Tee | Push, Press, Forge, Cast, etc. |
| Cast Iron Equal Tee Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Origin & Mills for Carbon Steel Equal Tee | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Key markets and industries for Copper Equal Tee |
|
| Equal Flow Tee Application |
|
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASME B16.9 Equal Tee Fitting Material
Asme B16 9 Tee Types

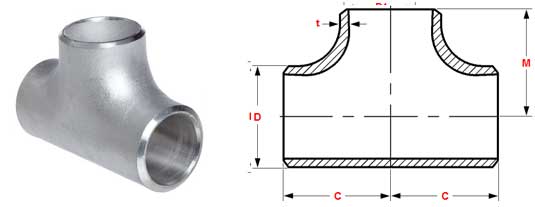

ASME B16.9 Equal Tee Dimensions
| ominal Pipe Size | Outside diameter at bevel |
Center-to-End | |
|---|---|---|---|
| Run (C) | Outlet(M) | ||
| 1/2" | 21.3 | 25 | 25 |
| 3/4" | 26.7 | 29 | 29 |
| 1" | 33.4 | 38 | 38 |
| 1 1/4" | 42.2 | 48 | 48 |
| 1 1/2" | 48.3 | 57 | 57 |
| 2" | 60.3 | 64 | 64 |
| 2 1/2" | 73.0 | 76 | 76 |
| 3" | 88.9 | 86 | 86 |
| 3 1/2" | 101.6 | 95 | 95 |
| 4" | 114.3 | 105 | 105 |
| 5" | 141.3 | 124 | 124 |
| 6" | 168.3 | 143 | 143 |
| 8" | 219.1 | 178 | 178 |
| 10" | 273.0 | 216 | 216 |
| 12" | 323.8 | 254 | 254 |
| 14" | 355.6 | 279 | 279 |
| 16" | 406.4 | 305 | 305 |
| 18" | 457.0 | 343 | 343 |
| 20" | 508.0 | 381 | 381 |
| 22" | 559.0 | 419 | 419 |
| 24" | 610.0 | 432 | 432 |
ASME B16.9 Equal Tee Fitting Weight Chart
| NPS | LBS | KG |
| 1/2 | 0.35 | 0.16 |
| 3/4 | 0.45 | 0.2 |
| 1 | 0.75 | 0.34 |
| 1.1/4 | 1.3 | 0.59 |
| 1.1/2 | 2 | 0.91 |
| 2 | 3.5 | 1.59 |
| 2.1/2 | 6 | 2.72 |
| 3 | 7 | 3.18 |
| 3.1/2 | 9 | 4.08 |
| 4 | 12 | 5.44 |
| 5 | 21 | 9.53 |
| 6 | 34 | 15.42 |
| 8 | 55 | 24.95 |
| 10 | 85 | 38.56 |
| 12 | 120 | 54.43 |
| 14 | 165 | 74.84 |
| 16 | 195 | 88.45 |
| 18 | 249 | 112.94 |
| 20 | 342 | 155.13 |
| 22 | 414 | 187.79 |
| 24 | 528 | 239.5 |
| 26 | 770 | 349.27 |
| 30 | 1060 | 480.81 |
| 36 | 1490 | 675.85 |
