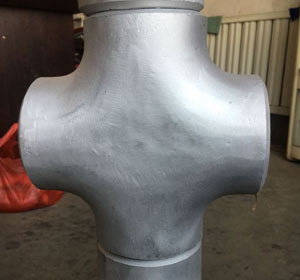

Titanium Equal Cross is a pipe fitting that allows for the division of flow or the convergence of multiple pipes in a piping system. The term "equal" indicates that all four arms of the cross have the same diameter, resulting in an even flow distribution at the intersection point. Cross Pipe Fittings are also referred to as four-way fittings or cross branch lines. These SS Equal Cross, have one inlet and three outlets or they could also be manufacturer vice versa i.e. – three inlets and one outlet.

Often the Buttweld Lateral Cross have a solvent-welded socket or female-threaded ends. Cross Fitting Dimensions could cause stress on pipes on account of temperatures change. This is because they are at the centre of four connection points.

Titanium Equal Cross

What is ASME B16.9 Cross?

This Standard covers the specifications of the Ansi B16.9 Pipe Cross Fittings overall dimensions, tolerances, testing, ratings, and markings for factory-made wrought buttwelding fittings. These Asme B16.9 Equal Cross are covered in sizes NPS 1 ∕ 2 through NPS 48 or DN 15 through DN 1200. The specification also covers fittings of any producible wall thickness, although this standard does not cover buttwelding fittings meant for low pressure corrosion resistant.

ANSI B16.9 Pipe Cap Fitting Specification

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASME B16.9 Cross
Equal Cross Fitting size	Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48"
Cross Fitting Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASME B16.9 Crosses Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
ANSI B16.9 Pipe Cross Fittings Types	Seamless / ERW / Welded / Fabricated Pipe Fittings
Stainless Steel Buttweld Equal Cross Fittings Type	DN15-DN1200
Connection for SS Equal Cross	Welding
ASME B16.9 Equal Cross Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
Carbon Steel Butt Weld Equal Cross Size Range	½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Buttweld Lateral Cross Fittings	Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process for Cross Pipe Fittings	Push, Press, Forge, Cast, etc.
ASME B16.9 Cross Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Origin & Mills for Equal Cross Fitting	Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for ASME B16.9 Crosses	Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids.
ANSI B16.9 Pipe Cross Fittings Application	Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc ASME B16.9 Schedule 10 Equal Crosses are an economical alternative for lower-pressure applications. ANSI B16.9 Schedule 40 Equal Crosses have a thicker wall for higher-pressure applications.

ASME B16.9 Buttweld End Cap Material

Carbon Steel Butt Weld Equal Cross	ASTM A105 Equal Cross Fitting ASME SA105 Equal Cross DIN 1.0402 Equal Cross Fitting DIN 1.0460 Equal Pipe Cross Fittings DIN 1.0619 BSP Equal Cross ASTM A105N Buttweld Equal Cross Fittings ASME SA105N BSP Equal Cross ASTM A350 LF2 Equal Cross Fitting ASME SA350 Equal Pipe Crosses Fittings High Yield CS ASTM A694 Crosses Pipe Fittings
Stainless Steel Buttweld Equal Cross Fittings	ASTM A182 F304 Equal Cross ASTM A182 F304L Buttweld Equal Cross Fittings ASTM A182 F316 Pipe Cross Fittings ASTM A182 F316L Equal Cross ASTM A182 F317 Buttweld Equal Cross Fittings ASTM A182 F317L Equal Cross Pipe Fittings ASTM A182 F321 Equal Cross ASTM A182 F321H Equal Crosses Fitting ASTM A182 F347 Equal Cross ASTM A182 F347H BSP Equal Cross
Alloy Steel Equal Cross	ASTM A182 F5 Equal Cross Fitting ASTM A182 F9 Pipe Crosses Fittings ASTM A182 F11 Equal Cross ASTM A182 F22 Buttweld Equal Cross Fittings ASTM A182 F91 Equal Cross
Inconel Equal Cross Fitting	Inconel 600 Buttweld Equal Crosses Inconel 601 Equal Crosses Inconel 625 BSP Equal Cross Inconel 718 Equal Cross Pipe Fittings Inconel x750 Buttweld Equal Crosses
Copper Pipe Cross Fittings	T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel Equal Crosses	Copper Nickel 90/10 (C70600 ) Equal Crosses, Cupro Nickel 70/30 (C71500) Crosses, UNS C71640 Pipe Cross Fittings
Brass BSP Equal Cross	3602 / 2604 / H59 / H62 / etc.
Hastelloy Buttweld Equal Cross Fittings	Hastelloy C276 (UNS N10276) Crosses, C22 (UNS N06022) Equal Crosses, C4 Equal Cross, C2000 Equal Cross Fitting, B2 Pipe Cross Fittings, B3 Crosses, X BSP Equal Crosses
Monel Buttweld Equal Cross Fittings	Monel 400 (UNS No. N04400) Crosses, Monel 500 (UNS No. N05500) Equal Cross Fitting
Alloy 20 Equal Pipe Cross Fittings	Carpenter® 20 Alloy Buttweld Equal Cross Fittings, Alloy 20Cb-3 Equal Cross Pipe Fittings
Aluminium Equal Cross Fitting	5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel Buttweld Equal Crosses Fittings	Nickel 200 Equal Cross, Nickel 201 BSP Equal Crosses
Duplex Buttweld Equal Cross Fittings	S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Cross	S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Equal Pipe Cross Fittings	Incoloy 800 BSP Equal Crosses, Incoloy 800H Equal Crosses, Incoloy 800HT (UNS N08800) Equal Cross Fitting, Incoloy 825 (UNS N08825) Equal Crosses
254 Smo Equal Crosses	SMO 254/6Mo Equal Crosses, UNS S31254 Equal Crosses, DIN 1.4547 Equal Cross Fitting
Nimonic Buttweld Equal Cross Fittings	Nimonic 75 Equal Crosses, Nimonic 80A Equal Crosses, Nimonic 90 Equal Crosses
Other BSP Equal Cross material	Tin bronze Equal Cross Fitting, Alumunum bronze Buttweld Equal Crosses Fittings, Lead bronze Buttweld Equal Crosses Fittings
Titanium Cross Pipe Fittings	ASTM B381 Titanium Gr. 1 Equal Crosses ASTM B381 Titanium Gr. 2 Buttweld Equal Crosses Fittings ASTM B381 Titanium Gr. 4 Equal Crosses Fitting ASTM B381 Titanium Gr. 5 Equal Crosses ASTM B381 Titanium Gr. 7 Equal Crosses Pipe Fittings

ASME B16.9 Cross Types

ASME B16.9 Cross SCH 10

ANSI B16.9 Cross Sch 80

Mss SS Equal Cross

Equal Cross Fitting SCH 40

ASME B16.9 Equal Cross Fitting

ANSI B16.9 Pipe Crosses Fittings

Din 2353 Buttweld Lateral Cross

Stainless Steel Buttweld Equal Cross Fittings

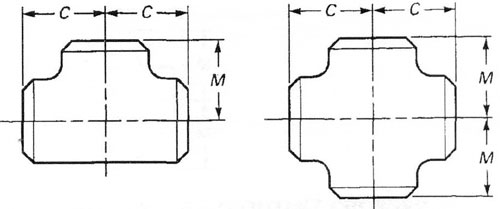

ASME B16.9 Cross Tee Pipe Fitting Dimensions

Nominal Pipe Size (NPS)	DN	Outside Diameter at Bevel	Center- to-End
Nominal Pipe Size (NPS)	DN	Outside Diameter at Bevel	Run.C	Outlet. M[Notes(1) and (2)]
1/2	15	21.3	25	25
3/4	20	26.7	29	29
1	25	33.4	38	38
1-1/4	32	42.2	48	48
1-1/2	40	48.3	57	57
2	50	60.3	64	64
2-1/2	65	73.0	76	76
3	80	88.9	86	86
3-1/2	90	101.6	95	95
4	100	114.3	105	105
5	125	141.3	124	124
6	150	168.3	143	143
8	200	219.1	178	178
10	250	273.0	216	216
12	300	323.8	254	254
14	350	355.6	279	279
16	400	406.4	305	305
18	450	457	343	343
20	500	508	381	381
22	550	559	419	419
24	600	610	432	432
26	650	660	495	495
28	700	711	521	521
30	750	762	559	559
32	800	813	597	597
34	850	864	635	635
36	900	914	673	673
38	950	965	711	711
40	1000	1016	749	749
42	1050	1067	762	711
44	1100	1118	813	762
46	1150	1168	851	800
48	1200	1219	889	838

ASME B16.9 Cross Weight Chart

Nominal Pipe Size (NPS)	DN	Outside Diameter at Bevel	Center- to-End
Nominal Pipe Size (NPS)	DN	Outside Diameter at Bevel	Run.C	Outlet. M[Notes(1) and (2)]
1/2	15	21.3	25	25
3/4	20	26.7	29	29
1	25	33.4	38	38
1-1/4	32	42.2	48	48
1-1/2	40	48.3	57	57
2	50	60.3	64	64
2-1/2	65	73.0	76	76
3	80	88.9	86	86
3-1/2	90	101.6	95	95
4	100	114.3	105	105
5	125	141.3	124	124
6	150	168.3	143	143
8	200	219.1	178	178
10	250	273.0	216	216
12	300	323.8	254	254
14	350	355.6	279	279
16	400	406.4	305	305
18	450	457	343	343
20	500	508	381	381
22	550	559	419	419
24	600	610	432	432
26	650	660	495	495
28	700	711	521	521
30	750	762	559	559
32	800	813	597	597
34	850	864	635	635
36	900	914	673	673
38	950	965	711	711
40	1000	1016	749	749
42	1050	1067	762	711
44	1100	1118	813	762
46	1150	1168	851	800
48	1200	1219	889	838
