Titanium Concentric Reducer

ANSI / ASME B16.9 Concentric Reducer

Manufacturer of ANSI B16.9 SS Reducer in Mumbai, India, Carbon Steel Concentric Reducer Bw Suppliers.

Titanium Concentric Reducer is a pipe fitting that is designed to connect two pipes of different diameters while maintaining a centerline or axis of the pipes. The reducer is called "concentric" because the center of the inlet and outlet ends align, forming a cone or taper.

According to the ASME B16.9 Concentric Reducer specification, the following materials can be used to manufacture reducers - , Hastelloy, Titanium, Monel, Nickel, Inconel Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 as well as Cupro-Nickel 70/30. Our regular production schedules include Stainless Steel Concentric Reducer B16.9 of different dimensions like - Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX in different stainless steel grades such as 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

asme-b-16-9-concentric-reducer
Titanium Concentric Reducer
What is ASME B16.9 Concentric Reducer?

The Specification for ASME B16.9 is a standard that covers Factory Made Wrought Steel Buttwelding Fittings like the Concentric Reducer Fitting. This Standard covers parameters such as the overall dimensions, ratings, tolerances, testing, and markings for both wrought carbon as well as alloy steel factory-made buttwelding fittings. The size range of the Concentric Reducer En 10253 2 covered in this specification ranges between NPS ½ inch up to 48 inches. The size range for both seamless and welded Ansi B 16.9 Concentric Reducer is different. To specify, the size range for seamless Asme B16.9 Reducer Dimensions are up to 24 inches, whereas welded Asme B16 9 Eccentric Reducer Dimensions are available in the size range between 8 inches up to 36 inches.

ANSI B 16.9 Concentric Reducer Specification
Specifications ASME B16.9 Concentric Reducer
Concentric Reducer Pipe Fittings size Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48"
BW Concentric Reducer Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Flanged Concentric Reducer Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Reducer Types Seamless / ERW / Welded / Fabricated Pipe Fittings
Concentric Reducer Type B Type DN15-DN1200
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
BW Concentric Reducer Fittings Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process Push, Press, Forge, Cast, etc.
Reducer Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for Concentric Reducer
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Application
  • Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc
  • ASME B16.9 Schedule 10 Concentric Reducer are an economical alternative for lower-pressure applications.
  • ANSI B16.9 Schedule 40 Concentric Reducer have a thicker wall for higher-pressure applications.
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Concentric Reducer Fitting Material
Carbon Steel Concentric Reducer
  • ASTM A105 Concentric Reducer
  • ASME SA105 Buttweld Concentric Reducer
  • DIN 1.0402 Concentric Reducer Fitting
  • DIN 1.0460 BW Concentric Reducer
  • DIN 1.0619 Concentric Reducer Type B
  • ASTM A105N Reducer
  • ASME SA105N Concentric Reducer Type B
  • ASTM A350 LF2 Concentric Reducer Fitting
  • ASME SA350 BW Concentric Reducer
  • High Yield CS ASTM A694 Flanged Concentric Reducer
Stainless Steel Concentric Reducer
  • ASTM A182 F304 Buttweld Concentric Reducer
  • ASTM A182 F304L Reducer
  • ASTM A182 F316 BW Concentric Reducer
  • ASTM A182 F316L Buttweld Concentric Reducer
  • ASTM A182 F317 Reducer
  • ASTM A182 F317L Flanged Concentric Reducer
  • ASTM A182 F321 Buttweld Concentric Reducer
  • ASTM A182 F321H Concentric Reducer Fitting
  • ASTM A182 F347 Concentric Reducer
  • ASTM A182 F347H Concentric Reducer Type B
Alloy Steel Buttweld Concentric Reducer
  • ASTM A182 F5 Concentric Reducer Fitting
  • ASTM A182 F9 BW Concentric Reducer
  • ASTM A182 F11 Concentric Reducer
  • ASTM A182 F22 Concentric Reducer Type B
  • ASTM A182 F91 Buttweld Concentric Reducer
Inconel Concentric Reducer Fitting
  • Inconel 600 BW Concentric Reducer
  • Inconel 601 Buttweld Concentric Reducer
  • Inconel 625 Concentric Reducer Type B
  • Inconel 718 Flanged Concentric Reducer
  • Inconel x750 Concentric Reducer En 10253 2
Copper BW Concentric Reducer T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel Flanged Concentric Reducer Copper Nickel 90/10 (C70600 ) Buttweld Concentrics Reducers, Cupro Nickel 70/30 (C71500) Concentrics Reducers, UNS C71640 BW Concentric Reducer
Brass Concentric Reducer Type B 3602 / 2604 / H59 / H62 / etc.
Hastelloy Reducer Hastelloy C276 (UNS N10276) Concentric Red., C22 (UNS N06022) Buttweld Concentrics Red., C4 Concentrics Red., C2000 Concentric Red. Fitting, B2 BW Concentric Red., B3 Concentric Red., X Concentric Red. Type B
Monel Reducer Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
Alloy 20 BW Concentric Reducers Carpenter® 20 Alloy, Alloy 20Cb-3 Flanged Concentric Red.
Aluminium Concentric Reducer Fitting 5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel Flanged Concentric Reducers Nickel 200, Nickel 201 Concentrics Reducer Type B
Duplex Reducer S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Concentric Reducer S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy BW Concentric Reducer Incoloy 800 Concentric Reducer Type B, Incoloy 800H, Incoloy 800HT (UNS N08800), Incoloy 825 (UNS N08825) Flanged Concentric Reducers
254 Smo Buttweld Concentric Reducer SMO 254/6Mo BW Concentric Red., UNS S31254 Concentric Red., DIN 1.4547 Concentric Red. Fitting
Nimonic Reducers Nimonic 75 Concentric Reducers, Nimonic 80A Concentric Reducers, Nimonic 90 Flanged Concentric Reducers
Other Concentric Reducers Type B material Tin bronze Concentric Reducers Fitting, Alumunum bronze Reducers, Lead bronze Reducers
Titanium Flanged Concentric Reducer
  • ASTM B381 Titanium Gr. 1
  • ASTM B381 Titanium Gr. 2
  • ASTM B381 Titanium Gr. 4
  • ASTM B381 Titanium Gr. 5
  • ASTM B381 Titanium Gr. 7

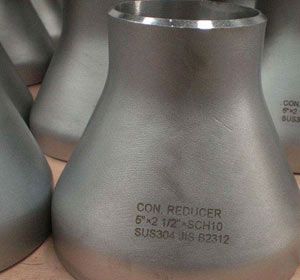

ASME B16.9 Reducer Types
concentric-reducer-manufacturers1
ASME B16.9 Reducer Sch 40 Butt Weld Concentric Reducers
concentric-reducer-manufacturers2
Concentric Reducer Fitting Sch 80 ANSI B16.9 ASTM A234 WPB Concentric Reducer
concentric-reducer-manufacturers3
ASME B16.9 Concentric Reducer En 10253 2 BW, 2 Inch x 1 Inch, Concentric Reducer, ASTM A234 WPB
concentric-reducer-manufacturers4
ANSI B16.9 Ansi B 16.9 Concentric Reducer 6 x 4 Inch, Butt Weld, A403 WP316L Reducer Conc
concentric-reducer-manufacturers6
Buttweld Concentric Reducer ASTM A234 WPB, BW Concentric Reducer, SCH 40
concentric-reducer-manufacturers8
Carbon Steel Concentric Reducer Bw ASTM A403 WP321H, BW, ANSI B16.9 Conc Reducers, 8 x 4 Inch, SCH 120
concentric-reducer-manufacturers7
DIN 2616 Buttweld Concentric Reducer A234 WPB, SCH40, BW, ANSI B16.9 Concentric Reducer
concentric-reducer-manufacturers11
A234 Gr WPB Concentric Reducer Fitting A234 WPB, 16×10 Inch BW, ANSI B16.9 Concentric Reducer

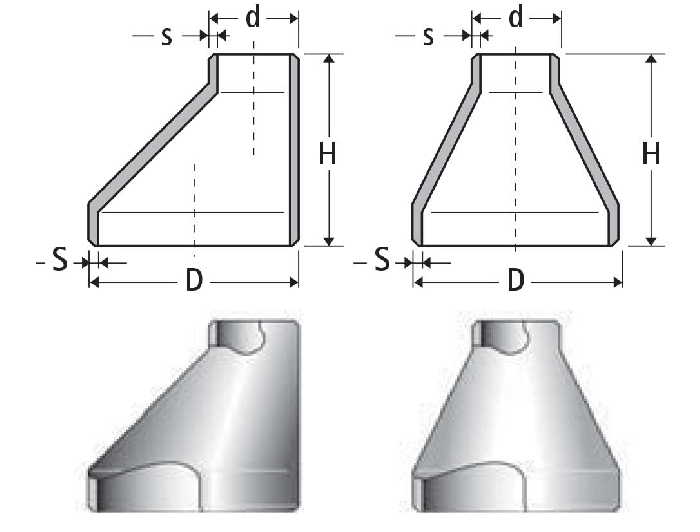

ASME B16.9 Concentric Reducer Dimensions
asme-b-16-9-concentric-reducer-dimensions
Code RCD REISO Ø BIG Ø SMALL HEIGHT H mm THEORETICAL WEIGHT KG
DN D mm Thickness S mm DN d mm Thickness s mm
27 21 3/4 26.9 2.3 1/2 21.3 2.0 38 0.08
33 21 1 33.7 2.6 1/2 21.3 2.0 50 0.09
33 27 3/4 26.9 2.3 0.09
42 21 1"1/4 42.4 2.6 1/2 21.3 2.0 50 0.12
42 27 3/4 26.9 2.3 0.13
42 33 1 33.7 2.6 0.14
*48 21 1"1/2 48.3 2.6 1/2 21.3 2.0 64 0.18
48 27 3/4 26.9 2.3 0.19
48 33 1 33.7 2.6 0.20
48 42 1"1/4 42.4 2.6 0.20
60 27 2 60.3 2.9 3/4 26.9 2.3 76 0.30
60 33 1 33.7 2.6 0.31
60 42 1"1/4 42.4 2.6 0.32
60 48 1"1/2 48.3 2.6 0.33
76 33 2"1/2 76.1 2.9 1 33.7 2.6 90 0.40
76 42 1"1/4 42.4 2.6 0.47
76 48 1"1/2 48.3 2.6 0.48
76 60 2 60.3 2.6 0.49
89 42 3 88.9 3.2 1"1/4 42.4 2.6 90 0.55
89 48 1"1/2 48.3 2.6 0.61
89 60 2 60.3 2.9 0.62
89 76 2"1/2 76.1 2.9 0.63
114 48 4 114.3 3.6 1"1/2 48.3 2.6 100 0.85
114 60 2 60.3 2.9 0.98
114 76 2"1/2 76.1 2.9 1.00
114 89 3 88.9 3.2 1.02
139 60 5 139.7 4.0 2 60.3 2.9 127 1.60
139 76 2"1/2 76.1 2.9 1.70
139 89 3 88.9 3.2 1.74
139 114 4 114.3 3.6 1.76
*168 76 6 168.3 4.5 2"1/2 76.1 2.9 140 2.60
168 89 3 88.9 3.2 2.70
168 114 4 114.3 3.6 2.82
168 139 5 139.7 4.0 2.94
219 114 8 219.1 6.3 4 114.3 3.6 152 5.03
219 139 5 139.7 4.0 5.12
219 168 6 168.3 4.5 5.18
*273 114 10 273.0 6.3 4 114.3 3.6 178 7.00
*273 139 5 139.7 4.0 7.20
273 168 6 168.3 4.5 7.40
273 219 8 219.1 6.3 7.55
323 168 12 323.9 7.1 6 168.3 4.5 203 11.00
323 219 8 219.1 6.3 11.10
323 273 10 273 6.3 11.20

N.B. code RCD = concentric reducers - code REISO = excentric reducers

* Only concentric

ASME B16.9 Concentric Reducer Fitting Weight Chart
NPS LBS KG
3/4-1/2 0.17 0.08
3/4-3/8 0.15 0.07
1-3/4 0.4 0.18
1-1/2 0.4 0.18
1.1/4-1 0.5 0.23
1.1/4-3/4 0.4 0.18
1.1/4-1/2 0.4 0.18
1.1/2-1.1/4 0.7 0.32
1.1/2-1 0.62 0.28
1.1/2-3/4 0.54 0.24
1.1/2-1/2 0.5 0.23
2-1.1/2 0.9 0.41
2-1.1/4 0.84 0.38
2-1 0.76 0.34
2-3/4 0.7 0.32
2.1/2-2 1.5 0.68
2.1/2-1.1/2 1.38 0.63
2.1/2-1.1/4 1.25 0.57
2.1/2-1 1.25 0.57
3-2.1/2 2 0.91
3-2 1.8 0.82
3-1.1/2 1.7 0.77
3-1.1/4 1.6 0.73
3.1/2-3 3.15 1.43
3.1/2-2.1/2 2.88 1.31
3.1/2-2 2.75 1.25
3.1/2-1.1/2 2.5 1.13
3.1/2-1.1/4 2.4 1.09
4-3.1/2 3.5 1.59
4-3 3.38 1.53
4-2.1/2 3.25 1.47
4-2 3 1.36
4-1.1/2 2.88 1.31
5-4 6 2.72
5-3.1/2 5.75 2.61
5-3 5.5 2.49
5-2.1/2 5.25 2.38
5-2 5 2.27
6-5 8.5 3.86
6-4 8.25 3.74
6-3.1/2 8.25 3.74
6-3 8 3.63
6-2.1/2 7.25 3.29
8-6 13.2 5.99
8-5 12 5.44
8-4 11 4.99
8-3.1/2 11 4.99
10-8 22 9.98
10-6 21.5 9.75
10-5 21 9.53
10-4 20 9.07
12-10 34 15.42
12-8 32 14.51
12-6 31 14.06
12-5 30 13.61
14-12 60 27.22
14-10 59.2 26.85
14-8 58.5 26.54
14-6 58 26.31
16-14 71 32.21
16-12 70 31.75
16-10 69.5 31.52
16-8 68.5 31.07
16-6 - -
18-16 85 38.56
18-14 84 38.1
18-12 83 37.65
18-10 82 37.19
18-8 - -
20-18 125 56.7
20-16 124 56.25
20-14 122 55.34
20-12 120 54.43
20-10 - -
20-8 - -
22-20 142 64.41
22-18 138 62.6
22-16 131 59.42
22-14 123 55.79
22-12 - -
22-10 - -
24-22 - -
24-20 150 68.04
24-18 148 67.13
24-16 145 65.77
24-14 - -
24-12 - -
24-10 - -
26-24 207 93.89
26-22 200 90.72
26-20 190 86.18
26-18 182 82.55
26-16 - -
26-14 - -
26-12 - -
28-26 224 101.6
28-24 216 97.98
28-22 210 95.25
28-20 199 90.26
30-28 241 109.32
30-26 232 105.23
30-24 224 101.6
30-22 220 99.79
30-20 220 99.79
NPS LBS KG
Dimensional Tolerances of ASME B16 9 Concentric Reducers
Nominal Pipe Size 1/2 to 2.1/2 3 to 3.1/2 4 5 to 8
Outside Diameter
at Bevel (D)		 + 1.6
– 0.8		 1.6 1.6 + 2.4
– 1.6
Inside Diameter at End 0.8 1.6 1.6 1.6
Overall Length (H) 2 2 2 2
Nominal Pipe Size 10 to 18 20 to 24 26 to 30 32 to 48
Outside Diameter
at Bevel (D)		 + 4
– 3.2		 + 6.4
– 4.8		 + 6.4
– 4.8		 + 6.4
– 4.8
Inside Diameter at End 3.2 4.8 + 6.4
– 4.8		 + 6.4
– 4.8
Overall Length (H) 2 2 5 5
Wall Thickness (t) Not less than 87.5% of Nominal Wall Thickness
