ANSI / ASME B16.9 Cap
Manufacturer of ANSI B16.9 SS End Caps in Mumbai, India, Carbon Steel Pipe Cap Suppliers.
Titanium End Cap also known as a titanium pipe cap, is a fitting that is used to close the end of a titanium pipe. It is designed to provide a seal at the end of the pipe, preventing the flow of fluids or gases and protecting the pipe from external contaminants.
At ASME B16.9 Cap, we produce various grades of B16.9 Buttweld End Cap. The materials used to manufacture pipe end caps in our factory are as follows – Duplex stainless steel, Stainless steel grades such as 304, 304L, 316, 316L, 321, 347, 317L, 310S, 904L, as well as different alloy grades such as - Alloy 201, Alloy 800H, Alloy C276, Cupro Nickel, Alloy 400, Alloy 625 and Alloy 600. Our stocklist at ASME B16.9 Cap includes both stainless steel pipe caps as well as Stainless Steel Pipe Cap that have been produced in standard sizes and grades. Besides producing Carbon Steel End Cap in various shapes like – round, square, rectangular ones, we manufacture products as required by the buyer based on customized shapes.
Titanium End Cap
What is ASME B16.9 Cap?
Sizes of ANSI B16.9 cap generally produced by our factory falls in the size range between ½ inch NB TO 36 inch NB and the ASME B16.9 cap weight are available in the following Wall Thickness Schedule 5S, 10S, 20S, S10, STD, 40S, S40, S60, XS, 80S, S20, S30, S80, S100, S120, S140, S160, XXS and etc. We manufacture different ASME B16.9 pipe cap dimensions and in various ends such as - Dish Cap, End Pipe, Pipe Cap, and Lateral Cap
ANSI B16.9 Pipe Cap Fitting Specification
| Specifications | ASME B16.9 Cap |
|---|---|
| ASME B16.9 Cap size | Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48" |
| ASME B16.9 Cap Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Bw Pipe Cap Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Cap Bw Sch 80 Types | Seamless / ERW / Welded / Fabricated Pipe Fittings |
| ASME B16.9 pipe cap Type | DN15-DN1200 |
| ANSI B16.9 Pipe Cap Fittings Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings |
| ASME B16.9 Buttweld End Cap Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| SS End Caps Fittings | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D,
5D,
6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Manufacturing process for Carbon Steel End Cap | Push, Press, Forge, Cast, etc. |
| Cap Bw Sch 80 Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Origin & Mills For Stainless Steel Pipe Cap | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Key markets and industries for Pipe Cap |
|
| ASME B16.9 Seamless Pipe End Cap Application |
|
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASME B16.9 Buttweld End Cap Material
ASME B16.9 Cap Types

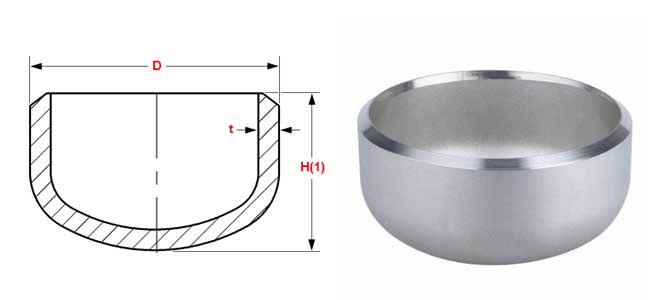

ASME B16.9 Cap Dimensions
| NPS | O.D. D |
LENGTH H |
LENGTH H1 |
|---|---|---|---|
| 1/2 | 21.3 | 25 | 25 |
| 3/4 | 26.7 | 25 | 25 |
| 1 | 33.4 | 38 | 38 |
| 1.1/4 | 42.2 | 38 | 38 |
| 1.1/2 | 48.3 | 38 | 38 |
| 2 | 60.3 | 38 | 44 |
| 2.1/2 | 73 | 38 | 51 |
| 3 | 88.9 | 51 | 64 |
| 3.1/2 | 101.6 | 64 | 76 |
| 4 | 114.3 | 64 | 76 |
| 5 | 141.3 | 76 | 89 |
| 6 | 168.3 | 89 | 102 |
| 8 | 219.1 | 102 | 127 |
| 10 | 273 | 127 | 152 |
| 12 | 323.8 | 152 | 178 |
| 14 | 355.6 | 165 | 191 |
| 16 | 406.4 | 178 | 203 |
| 18 | 457 | 203 | 229 |
| 20 | 508 | 229 | 254 |
| 22 | 559 | 254 | 254 |
| 24 | 610 | 267 | 305 |
| 26 | 660 | 267 | … |
| 28 | 711 | 267 | … |
| 30 | 762 | 267 | … |
| 32 | 813 | 267 | … |
| 34 | 864 | 237 | … |
| 36 | 914 | 267 | … |
| 38 | 965 | 305 | … |
| 40 | 1016 | 305 | … |
| 42 | 1067 | 305 | … |
| 44 | 1118 | 343 | … |
| 46 | 1168 | 343 | … |
| 48 | 1219 | 343 | … |

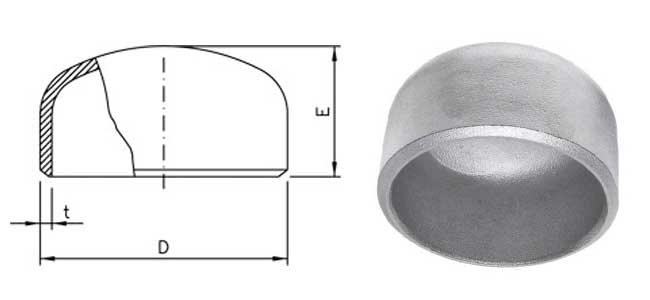

ASME B16.9 Pipe Cap Dimensions
|
CAPS – ANSI B 16.9 dimension |
|||
| inches | mm | Height | |
| D | E | ||
| 1/2 | 15 | 21,34 | 25,40 |
| 3/4 | 20 | 26,67 | 31,75 |
| 25 | 33,40 | 38,10 | |
| 1 1/4 | 32 | 42,16 | 38,10 |
| 1 1/2 | 40 | 48,26 | 38,10 |
| 2 | 50 | 60,32 | 38,10 |
| 2 1/2 | 65 | 73,02 | 38,10 |
| 3 | 80 | 88,90 | 50,80 |
| 3 1/2 | 90 | 101,60 | 63,50 |
| 4 | 100 | 114,30 | 63,50 |
| 5 | 125 | 141,30 | 76,20 |
| 6 | 150 | 168,27 | 88,90 |
| 8 | 200 | 219,07 | 101,60 |
| 10 | 250 | 273,05 | 127,00 |
| 12 | 300 | 323,85 | 152,40 |
| 14 | 350 | 355,60 | 165,10 |
| 16 | 400 | 406,40 | 177,80 |
| 18 | 450 | 457,20 | 203,20 |
| 20 | 500 | 508,00 | 228,60 |
| 22 | 550 | 558,80 | 254,00 |
| 24 | 600 | 609,60 | 266,70 |
| 28 | 700 | 711,20 | 266,70 |
| Dimension in mm | |||
ASME B16.9 Cap Weight Chart
| NPS | STD | XS | SCH 160 | XXS |
| 1 | 0.09 | 0.14 | 0.18 | 0.23 |
| 1.1/4 | 0.14 | 0.18 | 0.23 | 0.34 |
| 1.1/2 | 0.18 | 0.23 | 0.27 | 0.41 |
| 2 | 0.27 | 0.34 | 0.57 | 0.68 |
| 2.1/2 | 0.41 | 0.45 | 0.79 | 1.13 |
| 3 | 0.68 | 0.79 | 1.32 | 1.81 |
| 3.1/2 | 0.91 | 1.13 | – | 2.72 |
| 4 | 1.13 | 1.36 | 2.68 | 3.4 |
| 5 | 2.04 | 2.49 | 4.54 | 5.44 |
| 6 | 2.95 | 4.08 | 6.8 | 8.16 |
| 8 | 5.44 | 7.26 | 14.06 | 13.61 |
| 10 | 9.07 | 11.34 | 25.85 | – |
| 12 | 13.61 | 16.33 | 43.09 | – |
| 14 | 16.33 | 20.41 | – | – |
| 16 | 18.14 | 24.49 | – | – |
| 18 | 24.49 | 32.66 | – | – |
| 20 | 34.02 | 39.01 | – | – |
| 22 | 42.64 | 56.7 | – | – |
| 24 | 43.54 | 58.97 | – | – |
| 26 | 53.98 | 72.12 | – | – |
| 30 | 78.02 | 103.87 | – | – |
| NPS | STD | XS | SCH 160 | XXS |
Dimensional Tolerances of ANSI B16.9 Pipe Cap Fittings
| DIMENSIONAL TOLERANCES – CAPS | ||||
| For all fittings | Caps | |||
| Nominal Pipe Size (NPS) | Outside Ø at Bevel | Inside Ø at End | Wall Thickness t / t1 |
Overall Length E |
| 1/2 a 2 1/2 | 1 | 0,8 | Not | 4 |
| 3 a 3 1/2 | 1 | 1,6 | less | 4 |
| 4 | +2 -1 | 1,6 | than | 4 |
| 5 a 6 | +3 -1 | 1,6 | 87,50% | 7 |
| 8 | 2 | 1,6 | of nominal | 7 |
| 10 | +4 -3 | 3,2 | tickness | 7 |
| 12 a 18 | +4 -3 | 3,2 | 7 | |
| 20 a 24 | +6 -5 | 4,8 | 7 | |
| 26 a 30 | +7 -5 | 4,8 | 10 | |
| 32 a 48 | +7 -5 | 4,8 | 10 | |
