Titanium 45° Elbow

ANSI / ASME B16.9 45 Deg Elbow

Manufacturer of ANSI B16.9 Buttweld Elbow 45 Sch 40 in Mumbai, India, SS 45 Degree Elbow suppliers

Titanium 45° Elbow is a pipe fitting that is designed to change the direction of a titanium pipe by 45 degrees. This type of elbow is commonly used in piping systems where a slight change in direction is required. Here are some details about a titanium 45° elbow:

When specifying a titanium 45° elbow for a particular application, it's essential to consider factors such as the material compatibility, pressure and temperature requirements, size, and the specific standards that need to be met for the intended use. Additionally, consulting with manufacturers or suppliers who specialize in titanium pipe fittings can provide valuable assistance in selecting the appropriate elbow for a given application.

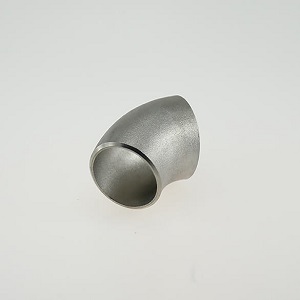

45-elbow-1
Titanium 45° Elbow
What is ASME B16.9 45 Deg Elbow?

LR or the 45 Deg Elbow Long Radius have a Centre to Face dimension. This dimension of the 45 Deg Elbow is 1.5 X diameter and are considered to be the more common type. Hence, the 45 Deg Street Elbow can be used when space is available and when the flow is more critical.

Carbon Steel 45 Degree Elbow Fitting Specification
Specifications ASME B16.9 45 Deg Elbow
ASME B16.9 elbow 45 degree size Seamless Butt Weld Fittings: 1/2″ – 10″

Welded Butt Weld Fittings: 1/2″ – 48″
45 Deg Elbow Short RadiusType DN15-DN1200
45 Deg Elbow Lr Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
45 Deg Elbow Long Radius Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Carbon Steel 45 Degree Elbow Fitting Types Seamless / ERW / Welded / Fabricated Pipe Fittings
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
45 Degree Pipe Elbow Size Range ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
ASME B16.9 45 Deg Elbow Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for 45 Deg Street Elbow
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
45 Deg Short Radius Elbow Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.

Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
45 degree elbow manufacturers process for Push, Press, forge, Cast, etc.
ASME B16.9 45 Deg Elbow Test Certificates EN 10204/3.1B

Raw Materials Certificate

100% Radiography Test Report

Third Party Inspection Report, etc
Application for ASME B16.9 Elbow 45 Deg
  • Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc
  • Schedule 10 fittings are an economical alternative for lower-pressure applications.
  • Schedule 40 fittings have a thicker wall for higher-pressure applications.
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Stainless Steel 45 Degree Elbow Material
Carbon Steel 45 Degree Elbow Fitting
  • ASTM A105 45 Deg Elbow Long Radius
  • ASME SA105 45 Degree Pipe Elbow
  • ASTM A105N 45 Deg Street Elbows
  • ASME SA105N 45 Deg Short Radius Elbows
  • ASTM A350 LF2 45 Degree Compression Elbows
  • ASME SA350 SCH 80 45 Degree Elbow
  • High Yield CS ASTM A694 Elbow 45 Sch 10
Stainless Steel 45 Degree Elbow
  • ASTM A182 F304 Elbow 45 Sch 40
  • ASTM A182 F304L SCH 80 SCH 80 45 Degree Elbow
  • ASTM A182 F316 Buttweld Elbow 45 Degree
  • ASTM A182 F316L Elbow 45 Degree
  • ASTM A182 F317 45 Degree Mitered Elbows
  • ASTM A182 F317L 45 Deg Elbows
  • ASTM A182 F321 45 Deg Elbow Short Radius
  • ASTM A182 F321H 45 Deg Elbow Short Radius
  • ASTM A182 F347 45 Deg Elbow LR
  • ASTM A182 F347H 45 Deg Elbow Long Radius
Inconel 45 degree elbow
  • Inconel 600 45 Degree Pipe Elbows
  • Inconel 601 45 Deg Street Elbows
  • Inconel 625 45 Deg Short Radius Elbows
  • Inconel 718 45 degree elbow
  • Inconel x750 45 Degree Compression Elbow
Alloy Steel 45 degree elbow
  • ASTM A182 F5 SCH 80 45 Degree Elbow
  • ASTM A182 F9 Elbow 45 Sch 10
  • ASTM A182 F11 Elbow 45 Sch 40
  • ASTM A182 F22 SCH 80 45 Degree Elbows
  • ASTM A182 F91 Buttweld Elbow 45 Degree
Copper 45 Deg Elbow T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel 45 degree elbow Copper Nickel 90/10 (C70600 ) 45 Deg Elbows, Cupro Nickel 70/30 (C71500) 45 Deg Street Elbows, UNS C71640 SCH 80 45 Deg Elbow Short Radius
Brass 45 degree elbow 3602 / 2604 / H59 / H62 / etc.
Nickel 45 Degree Mitered Elbow Nickel 200, Nickel 201
Hastelloy Elbow 45 Degree Hastelloy C276 (UNS N10276) 45 Deg Elbow Short Radius, C22 (UNS N06022), B2 45 Deg Elbow Short Radius, B3 45 degree elbow,
Monel 45 Deg Elbow LR Monel 400 (UNS No. N04400) Elbow 45 Sch 10, Monel 500 (UNS No. N05500) Elbows 45 Sch 40
Alloy 20 45 Deg Elbow LR Carpenter® 20 Alloy, Alloy 20Cb-3
Aluminium 45 Deg Elbow Long Radius 5052 /6061/ 6063 / 2017 / 7075 / etc.
Incoloy 45 Degree Pipe Elbow Incoloy 800/800H/800HT SCH 80 45 Degree Elbows, Incoloy 825 (UNS N08825) 45 Deg Elbows
254 Smo 45 Deg Elbow Short Radius SMO 254/6Mo 45 Deg Elbow Long Radius, UNS S31254 SCH 80 45 Degree Elbow
Nimonic Elbow 45 Sch 10 Nimonic 75 Elbow 45 Degree, Nimonic 90 45 Degree Pipe Elbows
Other 45 degree elbow material Tin bronze, Alumunum bronze, Lead bronze
Duplex 45 degree elbow S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex SCH 80 SCH 80 45 Degree Elbow S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Titanium 45 Degree Mitered Elbow
  • ASTM B381 Titanium Gr. 1 45 Degree Mitered Elbows
  • ASTM B381 Titanium Gr. 2 45 degree elbows
  • ASTM B381 Titanium Gr. 4 45 Deg Elbow Short Radius
  • ASTM B381 Titanium Gr. 5 45 Deg Short Radius Elbows
  • ASTM B381 Titanium Gr. 7 SCH 80 45 Degree Elbows
ASME B16.9 45 Deg Elbow Types
45-degree-elbow-manufacturer
Elbow 45 Sch 10 ASTM A234 WPB, 22 Inch, 45 Degree LR Elbow, 0.375 Inch, BW
45-degree-elbow-manufacturer3
ASME B16.9 45 Deg Elbow ANSI B16.11, 2 Inch, Galvanized 45D Elbow, 3000LB
45-degree-elbow-manufacturer4
ANSI B16.9 45 Deg Elbow Short Radius ASTM A403 WP316L, 45D Long Radius Elbow, 4 Inch, BW
45-degree-elbow-manufacturer5
MSS SP43 45 Degree Elbow ASTM A105, CL3000, 3 Inch, Galvanized 45D Elbow
45-degree-elbow-manufacturer6
Buttweld Elbow 45 Degree ASTM A234 WPB, 45 Degree Elbow, 10 Inch, SCH40
45-degree-elbow-manufacturer9
Stainless Steel 45 Degree Elbow Fitting 45D, 24 Inch, ANSI B16.9 Elbow, 3LPE Coated, BW
45-degree-elbow-manufacturer10
A403 Gr WP304 45 Degree Pipe Elbow ASTM A234 WPB, 20 Inch, ANSI B16.49 5D Elbow
45-degree-elbow-manufacturer11
A234 Gr WPB 45 Deg Short Radius Elbow 20 Inch, Butt Welded End, ANSI B16.9 45 Elbow
45 Deg Elbow Dimensions

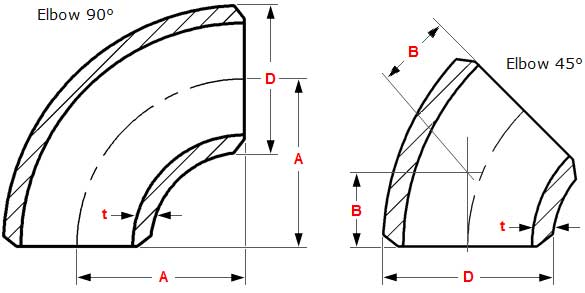

ASME B16.9 Elbow Radius & 45 Degree Elbow Dimensions

45-deg-elbow-dimensions
NPS O.D.
D		 90 degrees
Long Radius
Center-to-End
A		 45 degrees
Long Radius
Center-to-End
B		 90 degrees
3D
Center-to-End
A		 45 degrees
3D
Center-to-End
B
1/2 21.3 38 16 – –
3/4 26.7 38 19 57 24
1 33.4 38 22 76 31
1¼ 42.2 48 25 95 39
1½ 48.3 57 29 114 47
2 60.3 76 35 152 63
2½ 73 95 44 190 79
3 88.9 114 51 229 95
3½ 101.6 133 57 267 111
4 114.3 152 64 305 127
5 141.3 190 79 381 157
6 168.3 229 95 457 189
8 219.1 305 127 610 252
10 273 381 159 762 316
12 323.8 457 190 914 378
14 355.6 533 222 1067 441
16 406.4 610 254 1219 505
18 457 686 286 1372 568
20 508 762 318 1524 632
22 559 838 343 1676 694
24 610 914 381 1829 757
26 660 991 406 1981 821
28 711 1067 438 2134 883
30 762 1143 470 2286 964
32 813 1219 502 2438 1010
34 864 1295 533 2591 1073
36 914 1372 565 2743 1135
38 965 1448 600 2896 1200
40 1016 1524 632 3048 1264
42 1067 1600 660 3200 1326
44 1118 1676 695 3353 1389
46 1168 1753 727 3505 1453
48 1219 1829 759 3658 1516
NPS O.D.
D		 Buttweld 90 degrees
Long Radius
Center-to-End
A		 Buttweld 45 degrees
Long Radius
Center-to-End
B		 Buttweld 90 degrees
3D
Center-to-End
A		 Buttweld 45 degrees
3D
Center-to-End
B

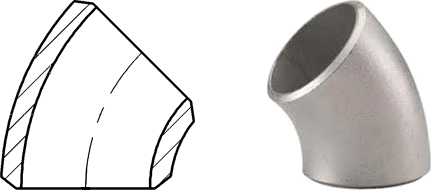

45 Deg Elbow Long Radius Schedule
elbows-45-long-radius-schedule
NPS LBS KG
1/2 0.09 0.04
3/4 0.09 0.04
1 0.25 0.11
1.1/4 0.38 0.17
1.1/2 0.4 0.18
2 0.81 0.37
2.1/2 1.75 0.79
3 2.63 1.19
3.1/2 3.5 1.59
4 4.5 2.04
5 7.5 3.4
6 12 5.44
8 23 10.43
10 43 19.5
12 62 28.12
14 80 36.29
16 100 45.36
18 126 57.15
20 160 72.57
22 197 89.36
24 238 107.95
26 275 124.74
30 367 166.47
36 531 240.86
NPS LBS KG
Dimensional Tolerances Of Asme B16.9 Buttweld Elbows- 45 Degree Pipe Elbow
DIMENSIONAL TOLERANCES – ELBOWS
For all fittings Elbows 90/45 deg 180° Returns
Nominal Pipe Size (NPS) Outside Ø
at Bevel		 Inside Ø
at End		 Wall Thickness
t / t1		 Center to End Dim. A-B-C-M Center to Center Dim.
O		 Back to Face Dim.
K		 Align- ment of Ends
U
1/2 a 2 1/2 1 0,8 Not 2 7 7 1
3 a 3 1/2 1 1,6 less 2 7 7 1
4 +2 -1 1,6 than 2 7 7 1
5 a 6 +3 -1 1,6 87,50% 2 7 7 1
8 2 1,6 of nominal 2 7 7 1
10 +4 -3 3,2 tickness 2 7 7 2
12 a 18 +4 -3 3,2 3 10 7 2
20 a 24 +6 -5 4,8 3 10 7 2
26 a 30 +7 -5 4,8 3 ….. ….. …..
32 a 48 +7 -5 4,8 5 ….. ….. …..
