Titanium Eccentric Reducer

ANSI / ASME B16.9 Eccentric Reducer

Manufacturer of ANSI B16.9 SS Eccentric Reducer in Mumbai, India, CS Eccentric Reducer Suppliers.

Titanium Eccentric Reducer The ASME B16.9 Eccentric Reducer is a variation of pipe reducers. These reducers are used in pipe fittings as a connector, to connect two pipes of varying or different diameters . A pipe reducer that is constructed of steel can have a flat bottom face, while maintaining one side of fitting. This kind of fitting is referred to as a Butt Weld Eccentric Reducer Schedule 40. Generally, Asme B16 9 Eccentric Reducer Dimensions are utilized in a Horizontal piping system.

titanium-eccentric-reducer

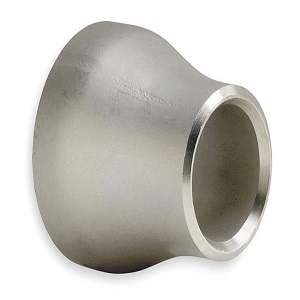

Titanium Eccentric Reducer
What is ASME B16.9 Eccentric Reducer?

The regular production at our factory, including stock items include reducers made from different alloy grades like stainless steel reducers, carbon steel reducers, alloy steel reducers and duplex steel reducers. The CS Eccentric Reducer are primarily used to adapt pipes of different sizes in a pipeline system. ANSI B16.9 Pipe reducers could largely be classified in two types – a concentric reducer and Stainless Steel Eccentric Reducer B16.9.

Stainless Steel Eccentric Reducer B16.9 Specification
Specifications ASME B16.9 Eccentric Reducer
Eccentric Reducer Schedule 80 Pipe Fittings size Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48"
Eccentric Buttweld Reducer Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Eccentric Reducer b16.9 Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Eccentric Pipe Reducer Types Seamless / ERW / Welded / Fabricated Pipe Fittings
Eccentric Reducer Schedule 40 Type DN15-DN1200
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
Stainless Steel Eccentric Reducer B16.9 Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Eccentric Buttweld Reducer Fittings Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process for CS Eccentric Reducer Push, Press, Forge, Cast, etc.
Eccentric Pipe Reducer Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Origin & Mills For Carbon Steel Eccentric Reducer Material Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for SS Eccentric Reducer
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Eccentric Reducer Schedule 40 Application
  • Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc
  • ASME B16.9 Schedule 10 Eccentric Reducer are an economical alternative for lower-pressure applications.
  • ANSI B16.9 Schedule 40 Eccentric Reducer have a thicker wall for higher-pressure applications.
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Carbon Steel Eccentric Reducer Material
Carbon Steel Eccentric Reducer
  • ASTM A105
  • ASME SA105
  • DIN 1.0402
  • DIN 1.0460
  • DIN 1.0619
  • ASTM A105N
  • ASME SA105N
  • ASTM A350
  • ASME SA350
  • High Yield CS
Stainless Steel Eccentric Reducer
  • ASTM A182 F304
  • ASTM A182 F304L
  • ASTM A182 F316
  • ASTM A182 F316L
  • ASTM A182 F317
  • ASTM A182 F317L
  • ASTM A182 F321
  • ASTM A182 F321H
  • ASTM A182 F347
  • ASTM A182 F347H
Alloy Steel Grooved Eccentric Reducer
  • ASTM A182 F5
  • ASTM A182 F9
  • ASTM A182 F11
  • ASTM A182 F22
  • ASTM A182 F91
Inconel Eccentric Reducer Schedule 80
  • Inconel 600
  • Inconel 601
  • Inconel 625
  • Inconel 718
  • Inconel x750
Copper Eccentric Buttweld Reducer T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel Eccentric Reducer b16.9 Copper Nickel 90/10 (C70600 ) Grooved Eccentric Reducers, Cupro Nickel 70/30 (C71500) Eccentric Reducers, UNS C71640 Eccentric Buttweld Reducers
Brass Eccentric Reducer Schedule 40 3602 / 2604 / H59 / H62 / etc.
Hastelloy Eccentric Pipe Reducer Hastelloy C276 (UNS N10276) Eccentric Reducers, C22 (UNS N06022) Grooved Eccentric Reducers, C4 Eccentric Reducers, C2000 Eccentric Reducers Schedule 80, B2 Eccentric Buttweld Reducers, B3 Eccentric Reducers, X Eccentric Reducers Schedule 40
Monel Eccentric Pipe Reducer Monel 400 (UNS No. N04400) Eccentric Reducers, Monel 500 (UNS No. N05500) Eccentric Reducers Schedule 80
Alloy 20 Eccentric Buttweld Reducer Carpenter® 20 Alloy Eccentric Pipe Reducers, Alloy 20Cb-3 Eccentric Reducers b16.9
Aluminium Eccentric Reducer Schedule 80 5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel Eccentric Reducer b16.9 Nickel 200 Eccentric Reducers, Nickel 201 Eccentric Reducers Schedule 40
Duplex Eccentric Pipe Reducer S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Eccentric Reducer S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Eccentric Buttweld Reducers Incoloy 800 Eccentric Reducer Schedule 40, Incoloy 800H Eccentric Reducers, Incoloy 800HT (UNS N08800) Eccentric Reducer Schedule 80, Incoloy 825 (UNS N08825) Eccentric Reducer b16.9
254 Smo Grooved Eccentric Reducers SMO 254/6Mo Eccentric Buttweld Reducer, UNS S31254 Eccentric Reducer, DIN 1.4547 Eccentric Reducer Schedule 80
Nimonic Eccentric Pipe Reducers Nimonic 75 Eccentric Reducer, Nimonic 80A Eccentric Reducers, Nimonic 90 Eccentric Reducer b16.9
Other Eccentric Reducer Schedule 40 material Tin bronze Eccentric Reducer Schedule 80, Alumunum bronze Eccentric Pipe Reducer, Lead bronze Eccentric Pipe Reducer
Titanium Eccentric Reducer b16.9
  • ASTM B381 Titanium Gr. 1
  • ASTM B381 Titanium Gr. 2
  • ASTM B381 Titanium Gr. 4
  • ASTM B381 Titanium Gr. 5
  • ASTM B381 Titanium Gr. 7
ASME B16.9 Eccentric Reducer Types
eccentric-reducer-manufacturers1
Eccentric Reducer Schedule 40 ANSI B16.9, BW, ASTM A234 WP5 Seamless Eccentric Reducer
eccentric-reducer-manufacturers3
ASME B16.9 CS Eccentric Reducer 8×4 Inch, SCH 40, SS A403 WP304 Eccentric Reducer, BW
eccentric-reducer-manufacturers4
ANSI B16.9 Grooved Eccentric Reducer SCH STD, 8 Inch×4 Inch, ASTM A234 WPB Eccentric Reducer
eccentric-reducer-manufacturers6
Buttweld Eccentric Reducer Schedule 40 Buttweld, ASTM A234 WP11 Eccentric Reducer
eccentric-reducer-manufacturers7
DIN 2616 Grooved Eccentric Reducer SCH 80, BW, Con Reducer, ASTM A234 WPB
eccentric-reducer-manufacturers8
Carbon Steel Eccentric Reducer Material ASTM A403 WP316 Eccentric Reducer, SCH 40, BW
eccentric-reducer-manufacturers10
A403 Gr WP304 CS Eccentric Reducer SCH 20, A234 WPB, 36 X 28 Inch BW Eccentric Reducer
eccentric-reducer-manufacturers11
A234 Gr WPB SS Eccentric Reducer ANSI B16.9, 6 X 3 Inch, ASTM A234 WPB Eccentric Reducer, SCH 80

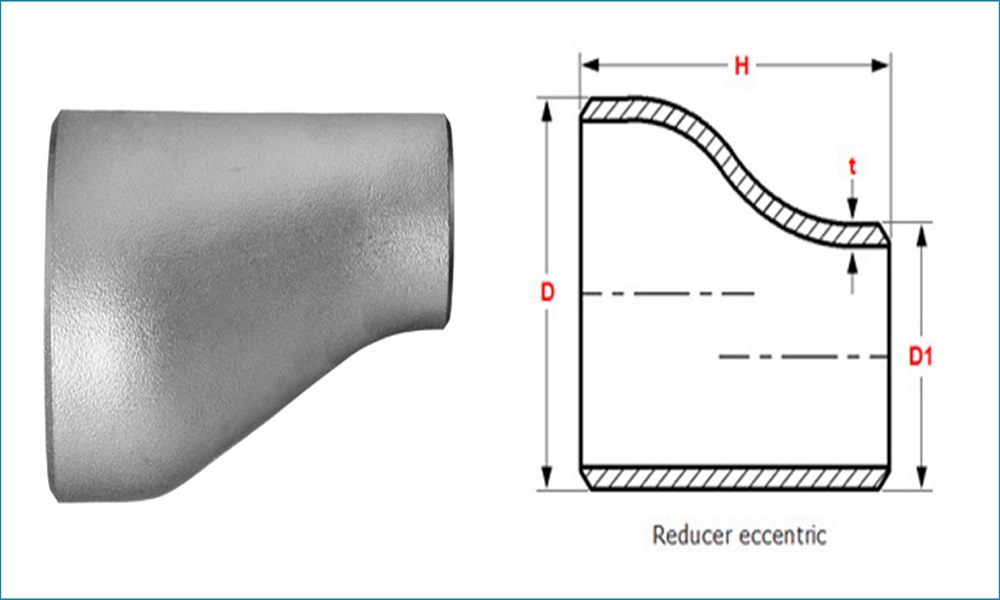

ASME B16.9 Eccentric Reducer Dimensions
asme-b-16-9-eccentric-reducer-dimensions
Code RCD REISO Ø BIG Ø SMALL HEIGHT H mm THEORETICAL WEIGHT KG
DN D mm Thickness S mm DN d mm Thickness s mm
27 21 3/4 26.9 2.3 1/2 21.3 2.0 38 0.08
33 21 1 33.7 2.6 1/2 21.3 2.0 50 0.09
33 27 3/4 26.9 2.3 0.09
42 21 1″1/4 42.4 2.6 1/2 21.3 2.0 50 0.12
42 27 3/4 26.9 2.3 0.13
42 33 1 33.7 2.6 0.14
*48 21 1″1/2 48.3 2.6 1/2 21.3 2.0 64 0.18
48 27 3/4 26.9 2.3 0.19
48 33 1 33.7 2.6 0.20
48 42 1″1/4 42.4 2.6 0.20
60 27 2 60.3 2.9 3/4 26.9 2.3 76 0.30
60 33 1 33.7 2.6 0.31
60 42 1″1/4 42.4 2.6 0.32
60 48 1″1/2 48.3 2.6 0.33
76 33 2″1/2 76.1 2.9 1 33.7 2.6 90 0.40
76 42 1″1/4 42.4 2.6 0.47
76 48 1″1/2 48.3 2.6 0.48
76 60 2 60.3 2.6 0.49
89 42 3 88.9 3.2 1″1/4 42.4 2.6 90 0.55
89 48 1″1/2 48.3 2.6 0.61
89 60 2 60.3 2.9 0.62
89 76 2″1/2 76.1 2.9 0.63
114 48 4 114.3 3.6 1″1/2 48.3 2.6 100 0.85
114 60 2 60.3 2.9 0.98
114 76 2″1/2 76.1 2.9 1.00
114 89 3 88.9 3.2 1.02
139 60 5 139.7 4.0 2 60.3 2.9 127 1.60
139 76 2″1/2 76.1 2.9 1.70
139 89 3 88.9 3.2 1.74
139 114 4 114.3 3.6 1.76
*168 76 6 168.3 4.5 2″1/2 76.1 2.9 140 2.60
168 89 3 88.9 3.2 2.70
168 114 4 114.3 3.6 2.82
168 139 5 139.7 4.0 2.94
219 114 8 219.1 6.3 4 114.3 3.6 152 5.03
219 139 5 139.7 4.0 5.12
219 168 6 168.3 4.5 5.18
*273 114 10 273.0 6.3 4 114.3 3.6 178 7.00
*273 139 5 139.7 4.0 7.20
273 168 6 168.3 4.5 7.40
273 219 8 219.1 6.3 7.55
323 168 12 323.9 7.1 6 168.3 4.5 203 11.00
323 219 8 219.1 6.3 11.10
323 273 10 273 6.3 11.20
ASME B16.9 Eccentric Reducer Weight Chart

Nominal Diameter		 Outside Diameter
End to End
D1*D2
DN NPS Series A Series B H
20*15 3/4*1/2 26.9*21.3 25*18 38
20*10 3/4*3/8 26.9*17.3 25*14 38
25*20 1*3/4 33.7*26.9 32*25 51
25*15 1*1/2 33.7*21.3 32*18 51
32*25 1.1/4*1 42.4*33.7 38*32 51
32*20 1.1/4*3/4 42.4*26.9 38*25 51
32*15 1.1/4*1/2 42.4*21.3 38*18 51
40*32 1.1/2*1.1/4 48.3*42.4 45*38 64
40*25 1.1/2*1 48.3*33.7 45*32 64
40*20 1.1/2*3/4 48.3*26.9 45*25 64
40*15 1.1/2*1/2 48.3*21.3 45*18 64
50*40 2*1.1/2 60.3*48.3 57*45 76
50*32 2*1.1/4 60.3*42.4 57*38 76
50*25 2*1 60.3*33.7 57*32 76
50*20 2*3/4 60.3*26.9 57*25 76
65*50 2.1/2*2 73.0*60.3 76*57 89
65*40 2.1/2*1.1/2 73.0*48.3 76*45 89
65*32 2.1/2*1.1/4 73.0*42.4 76*38 89
65*25 2.1/2*1 73.0*33.7 76*32 89
80*65 3*2.1/2 88.9*73.0 89*76 89
80*50 3*2 88.9*60.3 89*57 89
80*40 3*1.1/2 88.9*48.3 89*45 89
80*32 3*1.1/4 88.9*42.4 89*38 89
90*80 3.1/2*3 101.6*88.9 - 102
90*65 3.1/2*2.1/2 101.6*73.0 - 102
90*50 3.1/2*2 101.6*60.3 - 102
90*40 3.1/2*1.1/2 101.6*48.3 - 102
90*32 3.1/2*1.1/4 101.6*42.4 - 102
100*90 4*3.1/2 114.3*101.6 - 102
100*80 4*3 114.3*88.9 108*89 102
100*65 4*2.1/2 114.3*73.0 108*76 102
100*50 4*2 114.3*60.3 108*57 102
100*40 4*1.1/2 114.3*48.3 108*45 102
125*100 5*4 141.3*114.3 133*108 127
125*90 5*3.1/2 141.3*101.6 - 127
125*80 5*3 141.3*88.9 133*89 127
125*65 5*2.1/2 141.3*73.0 133*76 127
125*50 5*2 141.3*60.3 133*57 127
150*125 6*5 168.3*141.3 159*133 140
150*100 6*5 168.3*114.3 159*108 140
150*90 6*3.1/2 168.3*101.6 - 140
150*80 6*3 168.3*88.9 159*89 140
150*65 6*2.1/2 168.3*73.0 159*76 140
200*150 8*6 219.1*168.3 219*159 152
200*125 8*5 219.1*141.3 219*133 152
200*100 8*4 219.1*114.3 219*108 152
200*90 8*3.1/2 219.1*101.6 - 152
250*200 10*8 273.0*219.1 273*219 178
250*150 10*6 273.0*168.3 273*159 178
250*125 10*5 273.0*141.3 273*133 178
250*100 10*4 273.0*114.3 273*108 178
300*250 12*10 323.9*273.1 325*273 203
300*200 12*8 323.9*219.1 325*219 203
300*150 12*6 323.9*168.3 325*159 203
300*125 12*5 323.9*141.3 325*133 203
350*300 14*12 355.6*323.9 377*325 330
350*250 14*10 355.6*273.0 377*273 330
350*200 14*8 355.6*219.1 377*219 330
350*150 14*6 355.6*168.3 377*159 330
400*350 16*14 406.4*355.6 426*377 356
400*300 16*12 406.4*323.9 426*325 356
400*250 16*10 406.4*273.0 426*273 356
400*200 16*8 406.4*219.1 426*219 356
450*400 18*16 457*406.4 478*426 381
450*350 18*14 457*355.6 478*377 381
450*300 18*12 457*323.9 478*325 381
450*250 18*10 457*273.0 478*273 381
500*450 20*18 508*457 529*478 508
500*400 20*16 508*406.4 529*426 508
500*350 20*14 508*355.6 529*377 508
500*300 20*12 508*323.9 529*325 508
550*500 22*20 559*508 - 508
550*450 22*18 559*457 - 508
550*400 22*16 559×406.4 - 508
550*350 22*14 559*355.6 - 508
600*550 24*22 610*559 - 508
600*500 24*20 610*508 630*529 508
600*450 24*18 610*457 630*478 508
600*400 24*22 610*406.4 630*426 508
650*600 26*24 660*610 - 610
650*550 26*22 660*559 - 610
650*500 26*20 660*508 - 610
650*450 26*18 660*457 - 610
700*650 28*26 711*660 - 610
700*600 28*24 711*610 720*630 610
700*550 28*22 711*559 - 610
700*500 28*20 711*508 720*530 610
750*700 30*28 762*711 - 610
750*650 30*26 762*660 - 610
750*600 30*24 762*610 - 610
750*550 30*22 762*559 - 610
800*750 32*30 813*762 - 610
800*700 32*28 813*711 820*720 610
800*650 32*26 813*660 - 610
800*600 32*24 813*610 820*630 610
850*800 34*32 864*813 - 610
850*750 34*30 864*762 - 610
850*700 34*28 864*711 - 610
850*650 34*26 864*660 - 610
900*850 36*34 914*864 - 610
900*800 36*32 914*813 920*820 610
900*750 36*30 914*762 - 610
900*700 36*28 914*711 920*720 610
950*900 38*36 965*914 - 610
950*850 38*34 965*864 - 610
950*800 38*32 965*813 - 610
950*750 38*30 965*762 - 610
1000*950 40*38 1016*965 - 610
1000*900 40*36 1016*914 1020*920 610
1000*850 40*34 1016*864 - 610
1000*800 40*32 1016*813 1020*820 610
1050*1000 42*40 1067*1016 - 610
1050*950 42*38 1067*965 - 610
1050*900 42*36 1067*914 - 610
1050*850 42*34 1067*864 - 610
1100*1050 44*42 1118*1067 - 610
1100*1000 44*40 1118*1016 1120*1020 610
1100*950 44*38 1118*965 - 610
1100*900 44*36 1118*914 1220*920 610
1150*1100 46*44 1168*1118 - 711
1150*1050 46*42 1168*1067 - 711
1150*1000 46*40 1168*1016 - 711
1150*950 46*38 1168*965 - 711
1200*1150 48*46 1220*1168 - 711
1200*1100 48*44 1220*1118 1220*1120 711
1200*1050 48*42 1220*1067 - 711
1200*1000 48*40 1220*1016 1220*1020 711
Dimensional Tolerances of Grooved Eccentric Reducer
Nominal Pipe Size 1/2 to 2.1/2 3 to 3.1/2 4 5 to 8
Outside Diameter
at Bevel (D)		 + 1.6
– 0.8		 1.6 1.6 + 2.4
– 1.6
Inside Diameter at End 0.8 1.6 1.6 1.6
Overall Length (H) 2 2 2 2
Nominal Pipe Size 10 to 18 20 to 24 26 to 30 32 to 48
Outside Diameter
at Bevel (D)		 + 4
– 3.2		 + 6.4
– 4.8		 + 6.4
– 4.8		 + 6.4
– 4.8
Inside Diameter at End 3.2 4.8 + 6.4
– 4.8		 + 6.4
– 4.8
Overall Length (H) 2 2 5 5
Wall Thickness (t) Not less than 87.5% of Nominal Wall Thickness
kapoor forge Manufacturer of Ss ,Ms ,Cs Flanges & Pipe fitting

Follow Us

Quick Links

Home About Us Dimensions Certification Contact Us

Our Products

Flanges Pipes Pipe Fittings Fasteners Valve

Contact Us

B.P.T Plot No. 268/280, Kolsa Bunder, Darukhana, Mazgaon, Mumbai-400010.

kapoorforge4u@gmail.com

© 2025 KAPOOR FORGE, All rights reserved.

Chat with Us
