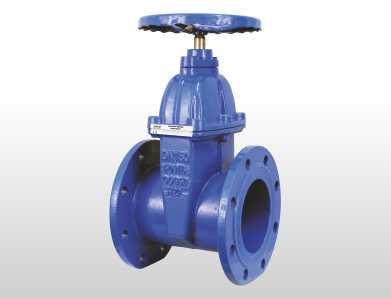

Manual High Pressure Valve :
A manual high-pressure valve is a type of valve designed to handle elevated pressure levels within a system. These valves are manually operated, meaning they require human intervention to open, close, or adjust the flow. High-pressure valves are commonly used in industries where the fluid or gas being controlled operates at pressures beyond the capacity of standard valves.
Here are some key features and considerations for manual high-pressure valves:
Construction Materials: High-pressure valves are typically constructed from robust materials that can withstand the stresses associated with elevated pressures. Common materials include stainless steel, alloy steel, and other high-strength alloys.
Body Design: The valve body is designed to handle high pressure without deformation or failure. It may have a robust, compact design to ensure structural integrity under pressure.
Seals and Packing: The seals and packing materials used in high-pressure valves are carefully selected to provide a secure and reliable seal even under high-pressure conditions. This helps prevent leaks and ensures the integrity of the system.
Connection Types: High-pressure valves come with various connection types to suit the specific requirements of the system. Threaded, flanged, or welded connections are common, and the choice depends on the application and the surrounding piping system.
Pressure Rating: Manual high-pressure valves are designed and manufactured with specific pressure ratings. The pressure rating indicates the maximum pressure that the valve can safely handle without compromising its structural integrity. It is crucial to match the pressure rating of the valve with the operating pressure of the system.
Valve Type: Different types of valves can be designed to handle high pressures, including ball valves, gate valves, globe valves, and, as mentioned earlier, butterfly valves. The choice of valve type depends on factors such as the required flow control, system characteristics, and the nature of the fluid or gas being handled.
Operating Mechanism: Manual high-pressure valves can be operated using various mechanisms, such as handwheels, levers, or gear operators. The chosen mechanism should provide sufficient mechanical advantage to open or close the valve against the high pressures in the system.
Locking Devices: In certain applications, it may be necessary to lock the valve in a specific position to prevent unauthorized or accidental adjustments. Some high-pressure valves come with locking devices for added safety and security.
